FastViDAR: Real-Time Omnidirectional Depth Estimation
via Alternative Hierarchical Attention

Paper arXiv Video Code Data
Sunset
Sunny
Cloudy

Abstract

In this paper we propose FastViDAR, a novel framework that takes four fisheye camera inputs and produces a full 360° depth map along with per-camera depth, fusion depth, and confidence estimates.

Our main contributions are: (1) We introduce Alternative Hierarchical Attention (AHA) that efficiently fuses features across views through separate intra-frame and inter-frame windowed self-attention, achieving cross-view feature mixing with reduced overhead. (2) We propose a novel ERP fusion approach that projects multi-view depth estimates to a shared equirectangular coordinate system to obtain the final fusion depth. (3) We generate ERP image–depth pairs using HM3D and 2D3D-S datasets for comprehensive evaluation, demonstrating competitive zero-shot performance on real datasets while achieving up to 20 FPS on NVIDIA Orin NX embedded hardware.

FastViDAR achieves strong accuracy–throughput trade-offs and robust omnidirectional perception in real-world robotics scenarios.

Framework

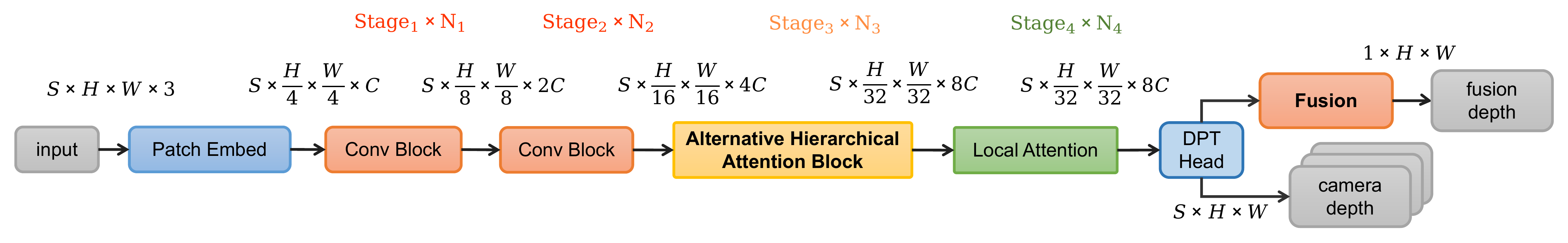

FastViDAR employs Alternative Hierarchical Attention (AHA) with ERP-centric processing and ERP fusion for seamless 360° depth. The pipeline alternates local window attention with per-frame/global summary attention and fuses multi-view depth on a shared ERP grid.

Overview (Architecture)
Overview (Architecture)
Alternative Hierarchical Attention (AHA)
Alternative Hierarchical Attention (AHA)

Benchmark Results

Method AbsRel ↓ RMSE ↓ Log10 ↓ δ<1.25 ↑ Time (ms)
VGGT 0.557 1.934 0.396 0.043 120
OmniStereo 0.619 1.450 0.154 0.554 66
LightStereo-M 0.125 0.667 0.050 0.851 33
FastViDAR 0.119 0.433 0.046 0.929 36

Zero-shot on Stanford 2D-3D-S. FastViDAR: 4 ERP views (FOV 220°). LightStereo via ERP-split stereo; VGGT via 8 pinhole projections projected back to ERP.

In-domain Results

This video demonstrates the performance achieved by training on the Sunny Subset of the Omnidirectional Stereo Dataset training set and evaluating on the test set.

Layout: Top left ERP-converted inputs; Bottom left omnidirectional depth maps (ERP); Top right colored BEV point cloud; Bottom right colored FPV.

Zero-shot Results

Part I: Omnidirectional Point Cloud

Trained on HM3D; zero-shot evaluated on 2D3D-S, indicating generalization capability.

Click the point cloud visualization window to enter interactive mode.

Part II: Omnidirectional Depth-based Mapping Using Odometry In The Wild

Related Links

BibTeX

@inproceedings{fastvidar_icra2026,
  title     = {FastViDAR: Real-Time Omnidirectional Depth Estimation via Alternative Hierarchical Attention},
  author    = {Author, A. and Author, B. and Author, C.},
  booktitle = {IEEE International Conference on Robotics and Automation (ICRA)},
  year      = {2026}
}
